美國ZEMIC稱重傳感器更多產品詳細資料請點擊：ZEMIC稱重傳感器，進入頁面可查找，ZEMIC Load Cell稱重傳感器、美國ZEMIC傳感器型號、技術參數以及ZEMIC傳感器具體安裝技術指導信息。jAd廣州南創電子科技有限公司產品品牌：美國ZEMIC
jAd廣州南創電子科技有限公司產品價格：電話咨詢報價(020-82303306)
jAd廣州南創電子科技有限公司產品規格：ZEMIC稱重傳感器有多種規格可選
jAd廣州南創電子科技有限公司購買德國NOVOTECHNIK傳感器請務必認準【廣州★南創】銷售商官網，全國服務電話：020-82303306。jAd廣州南創電子科技有限公司ZEMIC稱重傳感器產品圖片：
jAd廣州南創電子科技有限公司
jAd廣州南創電子科技有限公司更多關于ZEMIC傳感器的相關知識：
jAd廣州南創電子科技有限公司Load cells should be selected based on their performance (accuracy grade), environmental sealing (construction and element material), overload capabilities (safety), load introduction (off-centre sensitivity), dimensions and ease of mounting.
jAd廣州南創電子科技有限公司Never select load cells just on price as this may compromise system accuracy, long term trouble-free operation or even personal safety!
jAd廣州南創電子科技有限公司Zemic Europe force sensors and load cells
jAd廣州南創電子科技有限公司Which type of force transducers are available and which ones are best used? Zemic Europe, has a wide and complete range of force transducers. Different types of load cells are available such as:

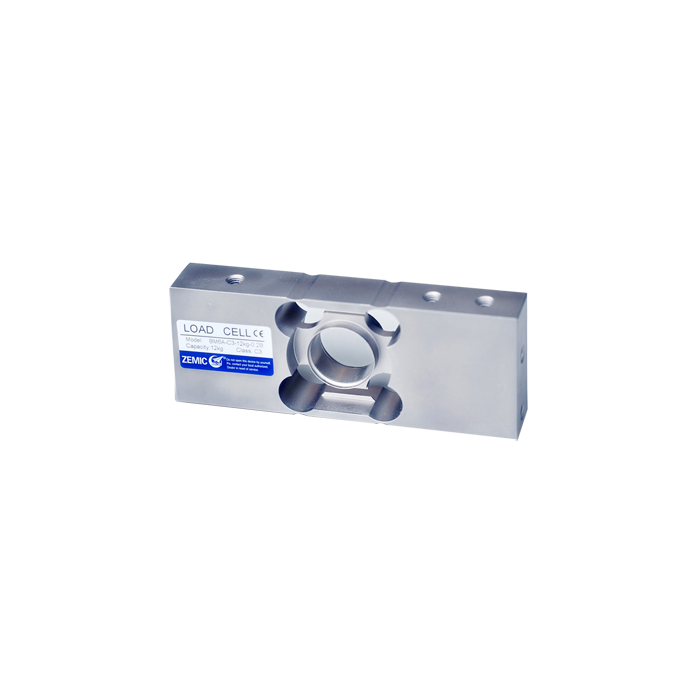

jAd廣州南創電子科技有限公司Single Point load cells;
jAd廣州南創電子科技有限公司Are used in small to medium sized platform scales with platform sizes between 200x200mm up to 1200x1200 mm. Available capacities 0,3kg up to 2t.
jAd廣州南創電子科技有限公司Planar Beam load cells;
jAd廣州南創電子科技有限公司Are used in applications where installation height is important, such as in medical and retail scales. Available capacities 6kg up to 130kg.
jAd廣州南創電子科技有限公司Bending Beam load cells;
jAd廣州南創電子科技有限公司Are used in pallet and platform weighing scales and small weighing bunkers. Available capacities 5kg up to 50t.
jAd廣州南創電子科技有限公司Shear Beam load cells;
jAd廣州南創電子科技有限公司Are used in scales applications in nearly every industry such as process, medical, retail, and agricultural. Available in capacities from 100kg to 50t.
jAd廣州南創電子科技有限公司Dual Shear Beam load cells;
jAd廣州南創電子科技有限公司Are used for truck/truck scales, tank and weighing bunkers. Available capacities 2,3t up to 113,4t.
jAd廣州南創電子科技有限公司S-type load cells;
jAd廣州南創電子科技有限公司Are used for pressure and pulling applications where static and dynamic forces are present, such as cranes. Available capacities 25kg up to 30t.
jAd廣州南創電子科技有限公司Compression load cells;
jAd廣州南創電子科技有限公司Are used for weighbridges, large weighing platforms and bunker scales. Available capacities 500kg up to 800t.
jAd廣州南創電子科技有限公司Ring Torsion load cells;
jAd廣州南創電子科技有限公司Are used for high accuracy weighing bunkers, silos, platforms, and pallet scales. Available capacities 60kg up to 60t.
jAd廣州南創電子科技有限公司Spoke Type load cells;
jAd廣州南創電子科技有限公司Are used with a low installation height and relatively high precision and for measuring large forces, capacities range from 1t-700t.
jAd廣州南創電子科技有限公司Onboard load cells;
jAd廣州南創電子科技有限公司Used for weighing on board a truck, tractor, or other vehicle. Range 6t-10t.
jAd廣州南創電子科技有限公司Loadpins;
jAd廣州南創電子科技有限公司Are integrated for measuring dynamic, static, and hoisting forces. These solutions are often custom made. Available capacities 0,5t up to 100t.
jAd廣州南創電子科技有限公司Weighpads;
jAd廣州南創電子科技有限公司Portable weighing pads for weighing cars and determining the center of gravity of airplanes 650kg – 15t.
jAd廣州南創電子科技有限公司All load cells we provide at Zemic Europe are based on the strain gauge principle. We focus on strain gauge load cells with analog and digital output signals. A strain gauge is attached to the elastomer of the Zemic load cell. The strain gauge is located at the weakest part of the element. By applying force to the American Zemic sensor, it will deflect at this point. Due to the deflection of the element, the Zemic sensor strain gauge will be stretched or compressed.
jAd廣州南創電子科技有限公司jAd廣州南創電子科技有限公司
jAd廣州南創電子科技有限公司美國ZEMIC稱重傳感器品牌其他系列產品推薦：jAd廣州南創電子科技有限公司B3G-C3-50kg-6B稱重傳感器jAd廣州南創電子科技有限公司
L6E-C3-50kg稱重傳感器jAd廣州南創電子科技有限公司
H3F-C3-100kg-6T稱重傳感器jAd廣州南創電子科技有限公司
H3G-C3-2.5t-6B稱重傳感器jAd廣州南創電子科技有限公司HM9C-C3-10K-9.3B稱重傳感器jAd廣州南創電子科技有限公司其他品牌產品推薦如下：jAd廣州南創電子科技有限公司特迪亞稱重傳感器jAd廣州南創電子科技有限公司
RDP位移傳感器jAd廣州南創電子科技有限公司
HBM傳感器jAd廣州南創電子科技有限公司
傳力稱重傳感器 jAd廣州南創電子科技有限公司
Transcell jAd廣州南創電子科技有限公司
托利多稱重傳感器jAd廣州南創電子科技有限公司
nobel傳感器jAd廣州南創電子科技有限公司
jAd廣州南創電子科技有限公司美國ZEMIC稱重傳感器產品型號：
jAd廣州南創電子科技有限公司L6E3-C3-150kg-3G；DBM14Kd12-C3-40t-20B6；HM9C-C3-10K-9.3B；B6N-C3-20kg-1B6；BM6G-C3-50kg-3B6；1P-350-G3-20kg；L6C-C3-20kg-2B；L6C-C3-5kg-2B；H6F-C3-100kg-3B6；HM9B-C3-10T-16B3-R1-A；HM9B-C3-10T-16B1-1C；H6F-C3-100kg-3B6-S1-D50；H6F-C3-200kg-3B6-S1-D50；L6E-C3-30kg-2B；L6F-C3D-500kg-3G；L6F-C3D-50kg-3G；L6F-C3D-750kg-3G；L6W-C3-50kg-3G6；L6W-C3-75kg-3G6；L6W-C3-300kg-3G6；B6F-C3-500kg-3B6；H6G-C3-500kg-3B6；BM6G-C3-50kg-3B6；Q45X8X67.5g-300g；HM9B-C3-40T-16B3-R1-1C；HM9B-C3-30T-16B3-R1-A；HM9B-C3-25T-12B；HM9B-C3-25T-16B-CR1-1C；HM9B-C3-30T-12B；HM9B-C3-30T-16B-CR1-1C；H8C-C3-3.0t-6B；BM6G-C3-20kg-3B6；B6N-C3-50kg-1B6；
jAd廣州南創電子科技有限公司有關美國ZEMIC LOAD CELL ZEMIC LOAD CELLS-CHINA相關知識拓展閱讀：
jAd廣州南創電子科技有限公司Mechanical stops for load cells
jAd廣州南創電子科技有限公司Mechanical stops are mainly used for bending beam, shear beam and single point load cells because they have a relatively high strain level with greater deflections compared with other measuring principles. A mechanical stop or overload protection can be simply achieved by installing a screw under the loadcell.
jAd廣州南創電子科技有限公司However in practice, this value is an indication. The exact deflection in tenths of mm at eMax, depends on various factors affecting the deflection values. For example; how is the force introduction installed, is the center of the scale installed exactly above the center of the loadcell etc.
jAd廣州南創電子科技有限公司The correct way to determine the distance to the screw is to load your application to a 110% full scale situation. When the application is loaded install the screw in such a way that the screw is touching the loadcell. Remove the weight and the mechanical overload protection has been installed properly.
jAd廣州南創電子科技有限公司美國ZEMIC L6E3-C3-150kg-3G稱重傳感器從精確地測定各頻率分量的幅值和相對相位來說,理想的傳感器的幅頻特性應當是常數(即水平直線),
ZEMIC稱重傳感器H6F-C3-100kg-3B6相頻特性應當是線性關系，否則就要產生失真。傳感器的輸出仍滯后于輸入時間,如果ZEMIC稱重傳感器測試的目的是精確地測出輸入波形,那么上述條件完全可以滿足要求;但在其他情況下，如美國ZEMIC稱重傳感器HM9B-C3-10T-16B1-1C測試結果要用為反饋控制信號,則上述條件是不充分的。因?yàn)檩敵鰧?duì)輸人時間的滯后可能破壞系統的穩定性。從ZEMIC傳感器HM9B-C3-25T-12B實現測試波形不失真條件和ZEMIC H8C-C3-3.0t-6B傳感器的其他工作性能來看,對傳感器與
自動配料系統時間常數r愈小，則響應愈快;對斜坡函數的響應，其時間滯后和穩定誤差將愈小;對正弦信號的響應幅度增大。
jAd廣州南創電子科技有限公司以上是美國ZEMIC稱重傳感器HM9C-C3-10K-9.3B產品相關銷售商官網、ZEMICH6F-C3-200kg-3B6-S1-D50傳感器廠家電話、ZEMIC L6C-C3-20kg-2B稱重傳感器器型號類別技術參數選型安裝等資料信息，如果有關美國ZEMIC L6W-C3-50kg-3G6傳感器其他相關方面需要，可直接電話聯系美國ZEMIC稱重傳感器B6F-C3-500kg-3B6相關負責工程師咨詢020-82303306。jAd廣州南創電子科技有限公司
